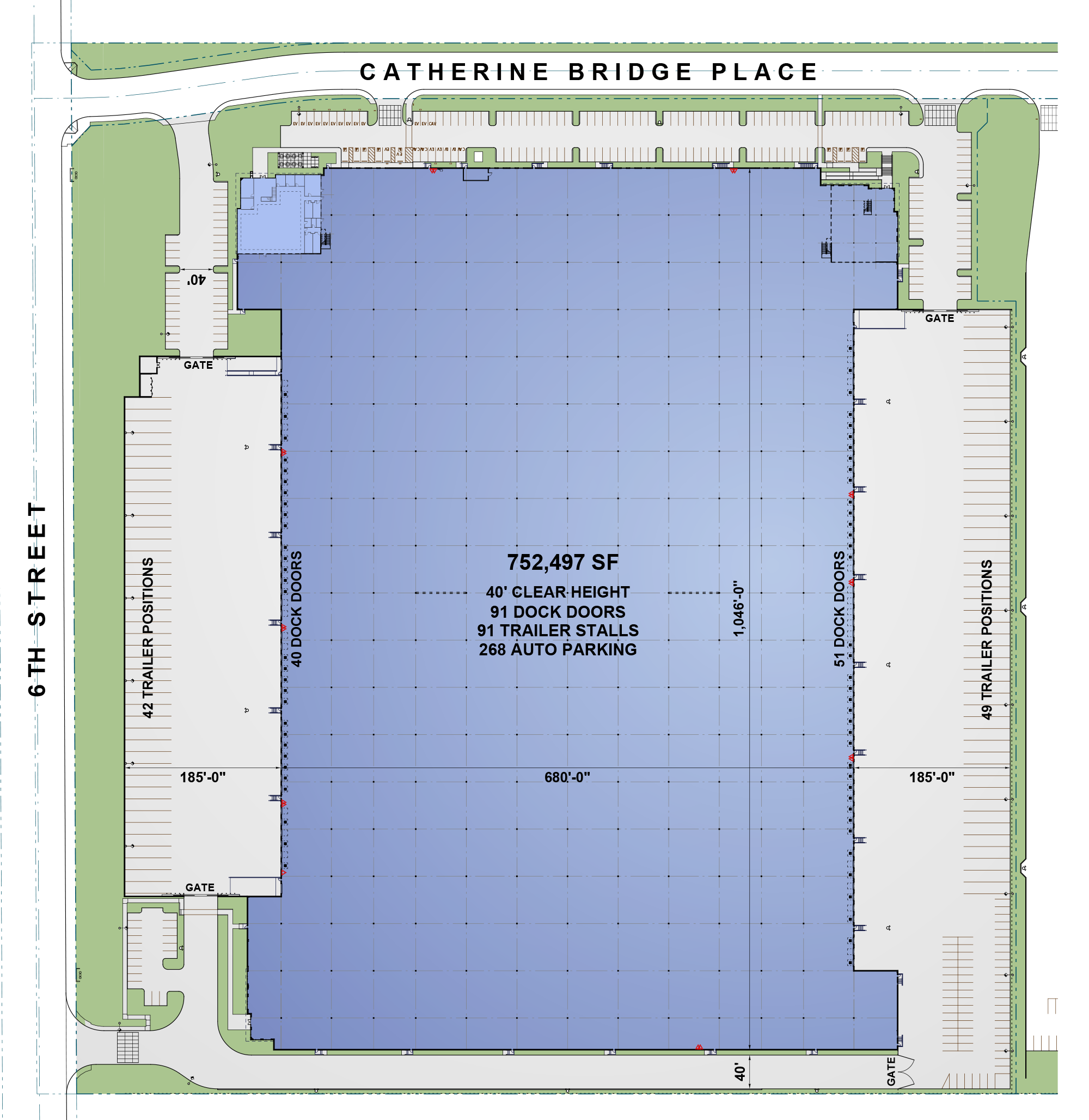

Bridge Point Rancho Cucamonga | Site Plan

Building Specs

Address	12415 Sixth Street, Rancho Cucamonga, CA
Building	Ground Floor Footprint: 737,285 sf Northeast Mezzanine: 8,310 sf Southeast Mezzanine: 6,902 sf Total Building Floor Area: 752,497 sf Separate Fire Pump Bldg: 460 sf
Tenant Improvements	Northeast Main Office 8,800 sf 1st floor 8,310 sf 2nd floor 17,110 sf total Includes: Large open 2-storry lobby w/ steel stair Two conference rooms Three private offices Break Room IT Room Janitor / Shower Separate Mens / Womens restrooms for Office & Warehouse Large open mezzanine plan includes restrooms and coffee bar Southeast Office Unfinished – mezzanine with temporary wood rail only
Site	29.89 ac Net Site Area
Clear Height	40' clear to underside of joists and/or girders excluding dock staging bay
Max. Deck Height	48' maximum at ridge
Overall Building Length	680' x 1,046'

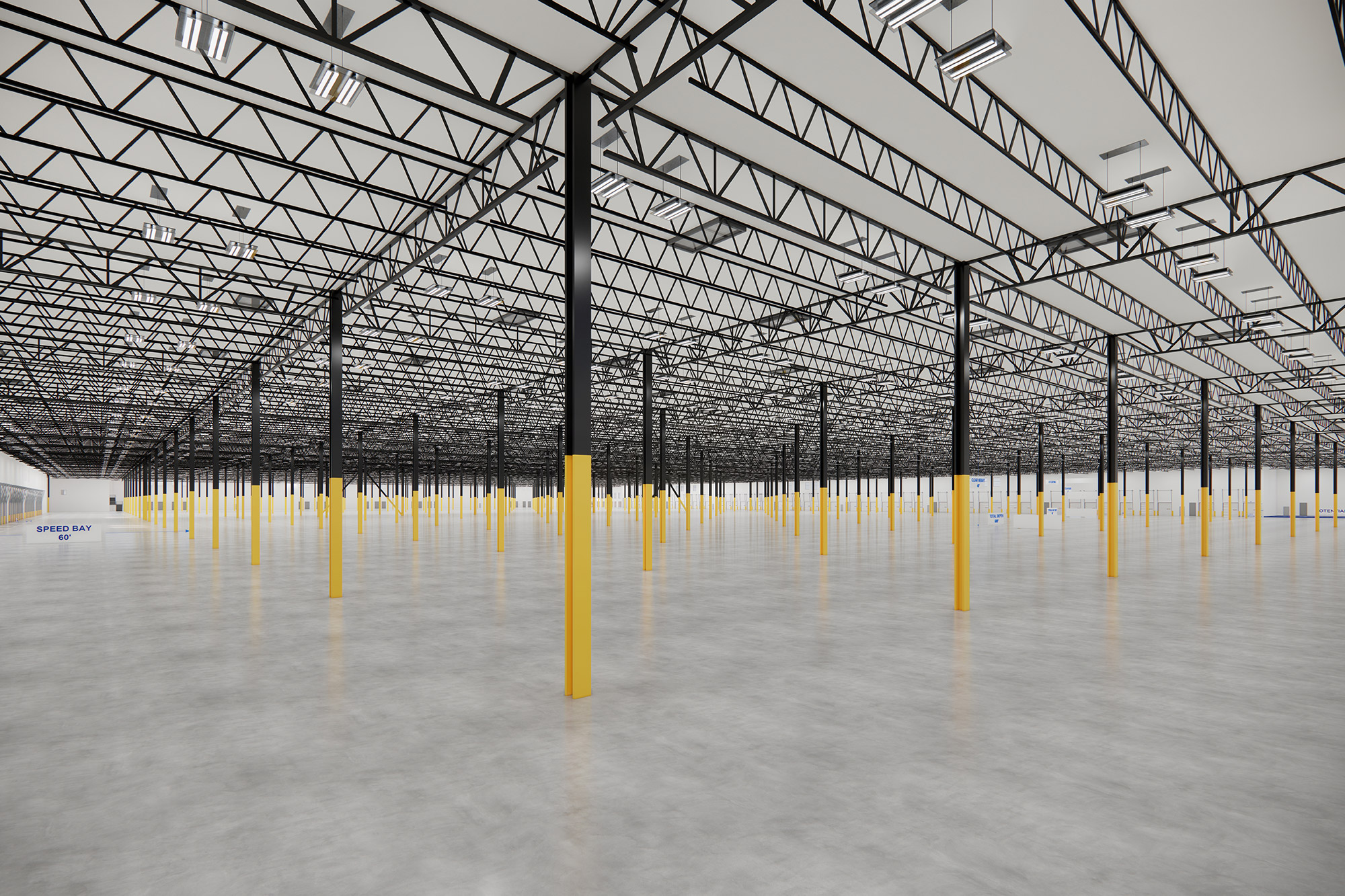

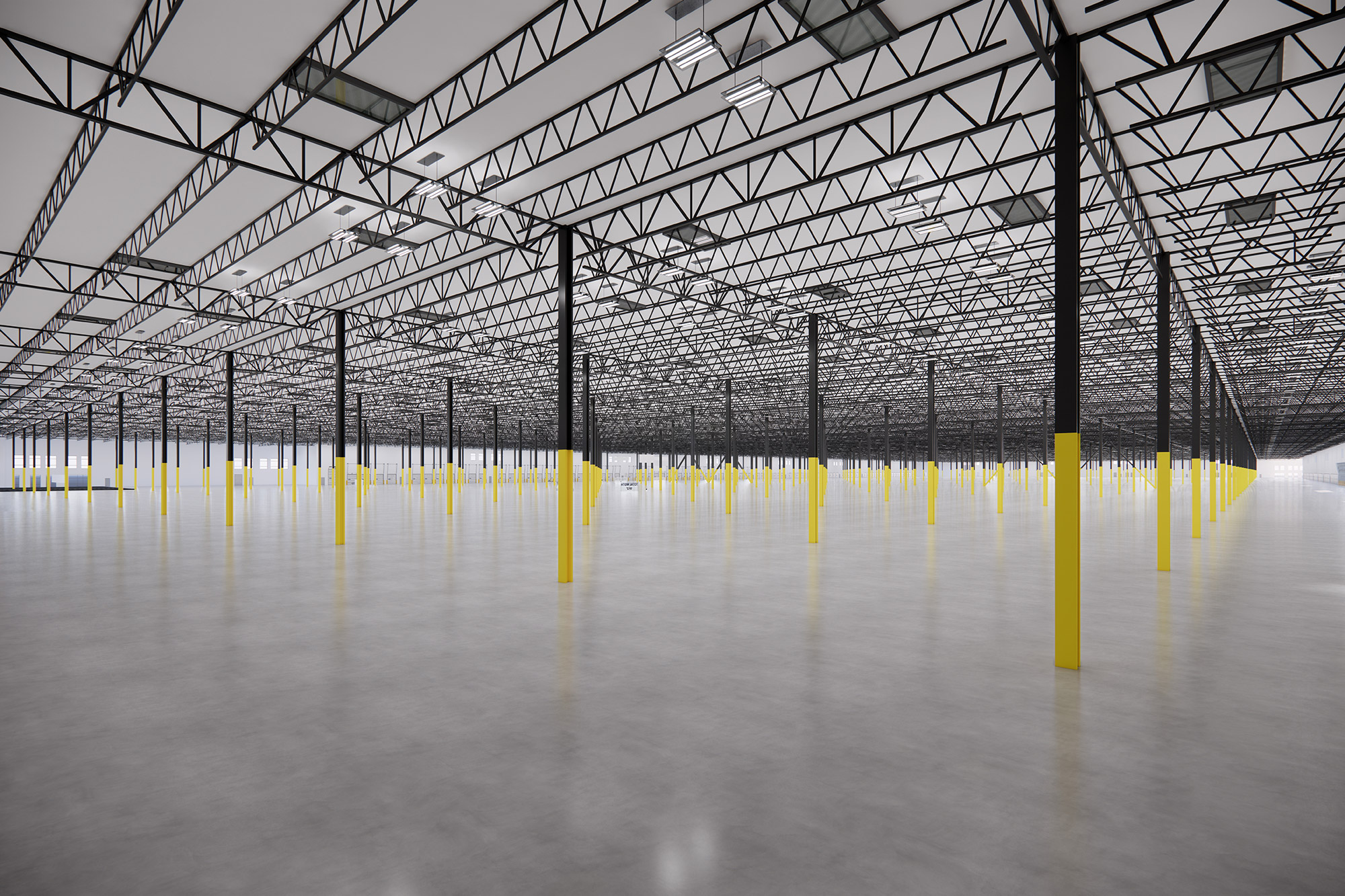

Typical Column Spacing	60'-0" x 56'-0" Typical

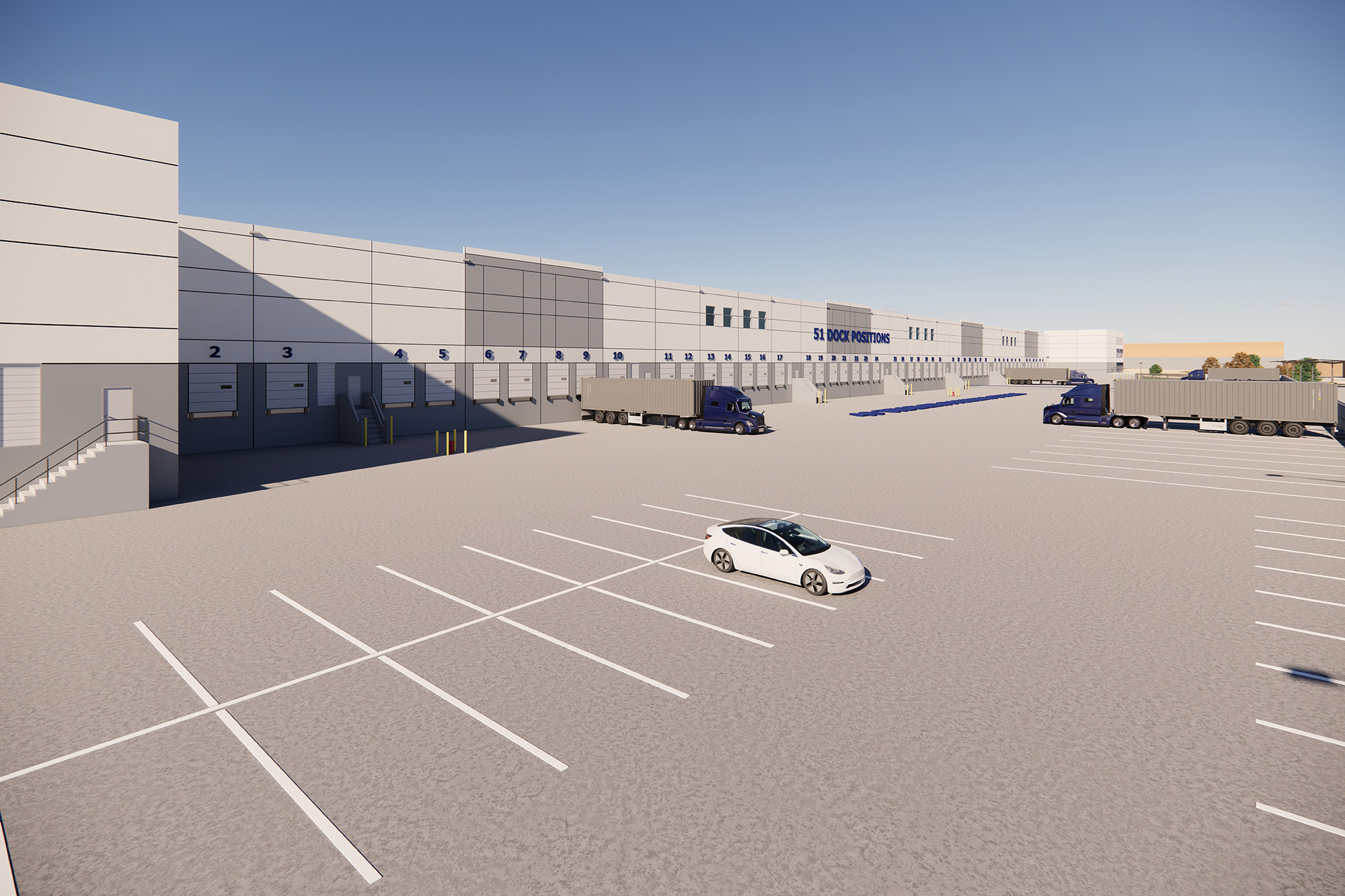

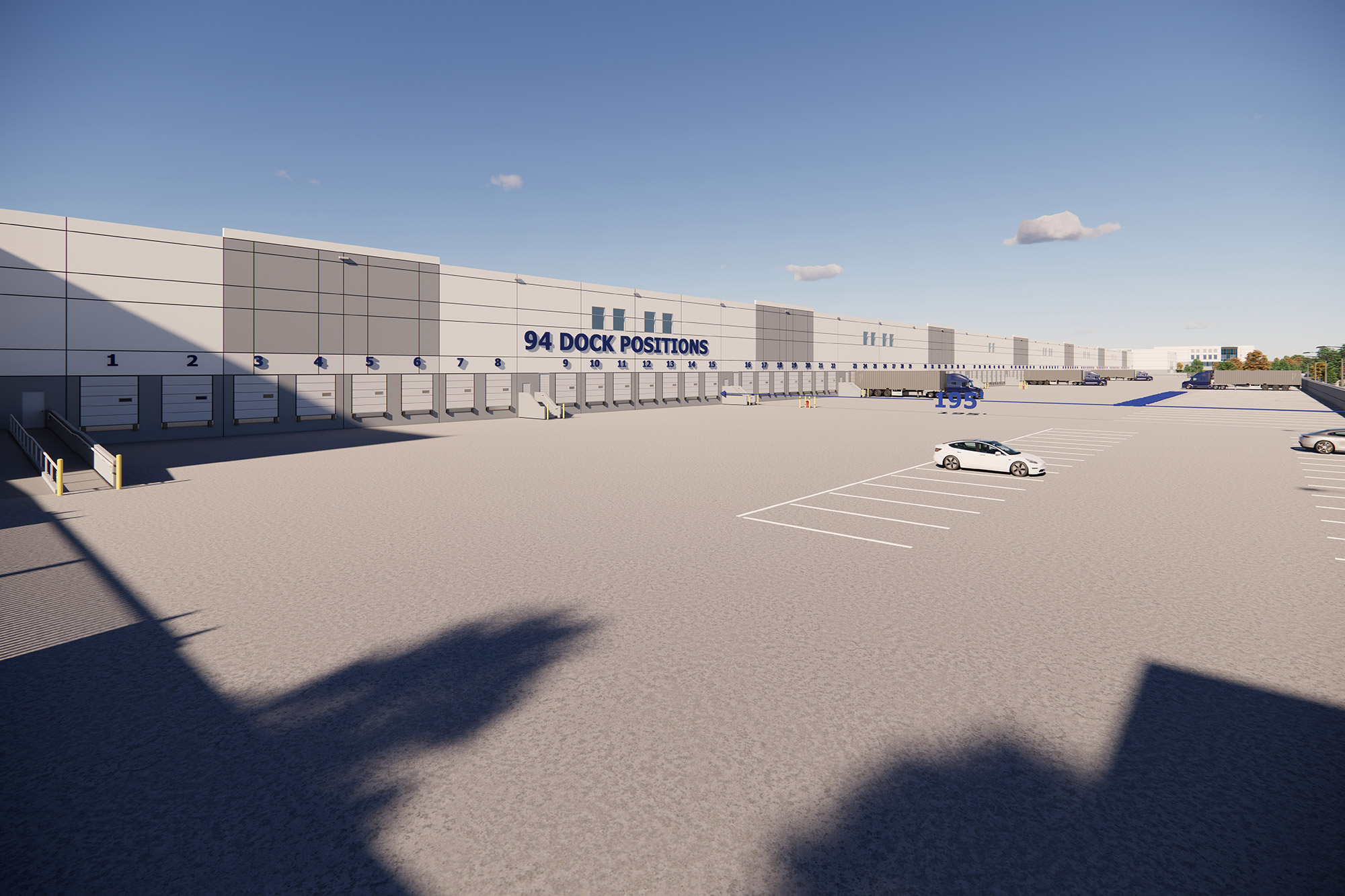

Dock Doors	91 dock high doors 9'W x 10'H – manual vertical lift 20 gauge doors w/ 1 vision lite Z-guards at all door jambs
Dock Equipment	68 SERCO Mechanical WS8740 Dock Levelers 7'0" wide x 8'0" long, 40,000 lbs. capacity Dock Bumpers at all doors without equipment
Grade Level Doors	(4) 12'W x 15'H grade level door – manual chain hoist (20 gauge doors w/ vision lite (Z-guards at all door jambs
Auto Parking	268 Auto Stalls 6% of stalls to be EV Ready
Trailer Parking	(91) 14'W x 53'L Trailer Stalls
Construction Type	Type III-B: concrete tilt-up walls, steel truss/girder roof with 1/2" thick panelized wood deck
Floor Slab	8" thick, 4,000 psi o/ native Perimeter reinforced / fully reinforced #3 bars @ 16" OCEW Ashford floor sealer MM80P @ speed bays
Truck Yard Slab	7" thick, 3,500 psi apron slab 6.5" thick, 3,500 psi full concrete truck yard (Traffic Index 8.0) 100% secure truck yard w/ two gated entrances into yard. All site paving is concrete.
Moisture Barrier	15 mil moisture barrier at all future office pod areas.
Roofing	Class “A", 4-ply built-up roof system, installed per manufacturer's specifications, with fifteen (15) year, no dollar limit warranty from the manufacturer and five-year labor guarantee.
Roof Access	Interior ladder / roof hatch
Solar	3.5 lbs. per SF misc. load capacity in the roof structure may be utilized for future solar installations
Building Insulation	White, foil-backed scrim across underside warehouse roof
Skylights	3% skylights / smoke vents across warehouse w/ tri-arch domes
Glazing	1" insulated low-E glazing at office areas ¼" monolithic reflected glazing at warehouse clerestory on all four sides of the building Class 1 anodized aluminum storefront system
Man Doors	3'x7' warehouse man doors as required for exit and fire access Schlage full mortise hardware w/ interchangeable cores (IC) for simple rekey
Painting	Exterior painting: One coat primer and one finish coat Interior painting: All warehouse walls one coat to cover. Columns / K-braces paint OHSA yellow to 10' AFF and primer grey above 10' Paint products to comply with LEED requirements
Electrical Service	4,000A @ 480v main service. Provisions in electrical room for additional future service to 8,000A ultimate service size
Warehouse Lighting	Lithonia HL30GMD & HL30NMM – LED Hbay with Integrated Motion Day Light Dimmer
Egress Lighting	Exit sign bug-eyes at perimeter
Conduit Provisions	Conduit connection at each dock position for future leveler Conduit to 4 site gates Conduit to 4 future guard booths
Site Lighting	LED site lighting with 0.5 footcandle minimum and 1.0 footcandle average.
Accent Lighting	None
Warehouse Ventilation	Warehouse: Rooftop exhaust fans for 1 complete air change per hour Air intake louvers – burglar bars at louvers outside the truck yards. No burglar bars at louvers inside truck yard.
Domestic Water	2" domestic water meter w/ 3" lateral to the building at northeast corner
Sanitary Sewer	6" sanitary sewer line (3 laterals across building) Sewer to pumphouse Sewer / water to future guard booth locations
Sanitary Sewer	8" dia. interior roof drains throughout project. Interior overflow drains at office pods, exterior overflow scuppers at dock walls. Roof drains at main office corners direct connect to storm drain. Overflow drains piped through curbface
Fire Protection	ESFR with K-25 heads and diesel fire pump located in truck dock court in freestanding structure
Landscaping	Low water use, high quality planting throughout
Misc. Site Amenities	Bicycle racks One outdoor lunch patios

Building Details

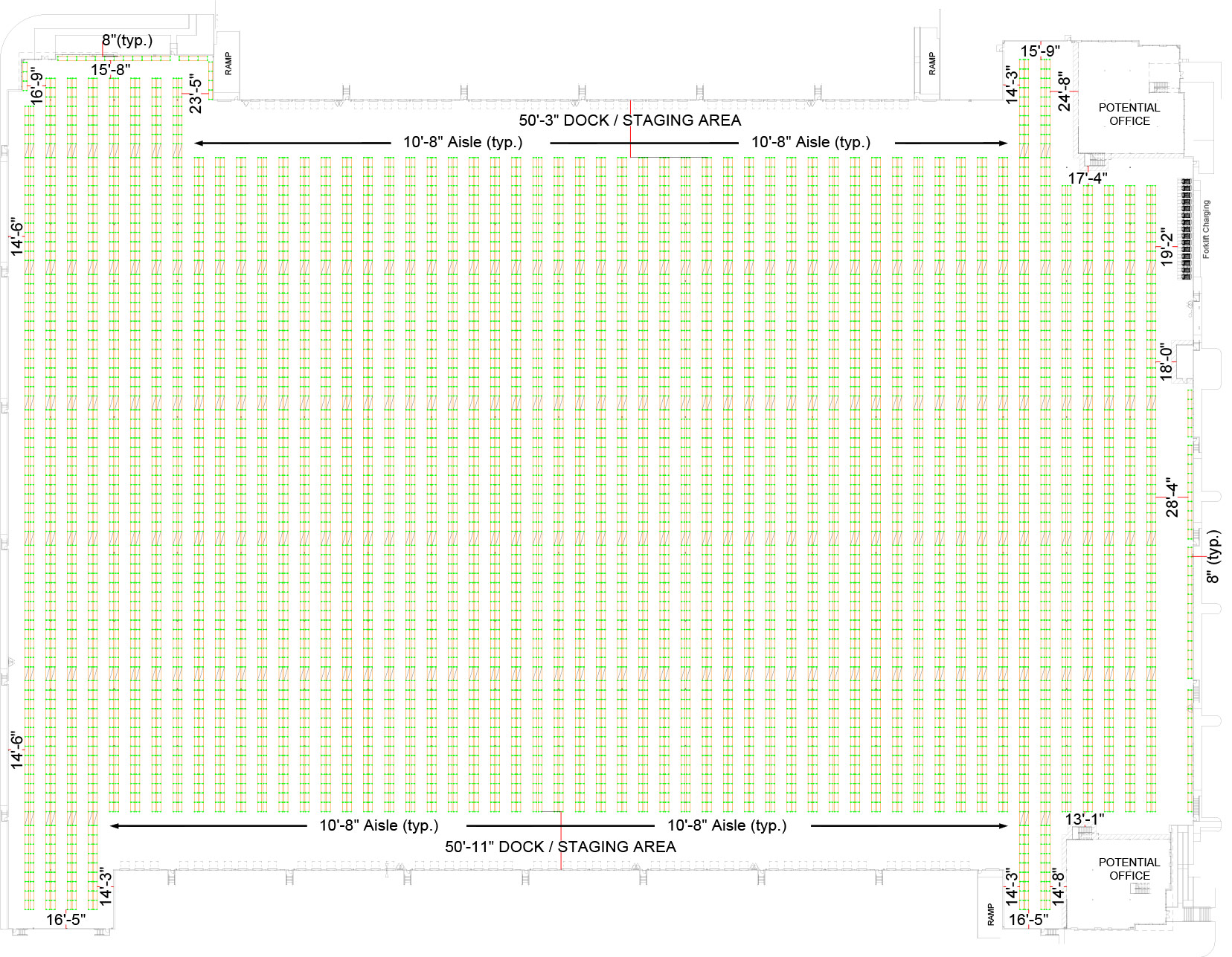

Sample Racking Plan

Building Specs

LEED Gold Certified

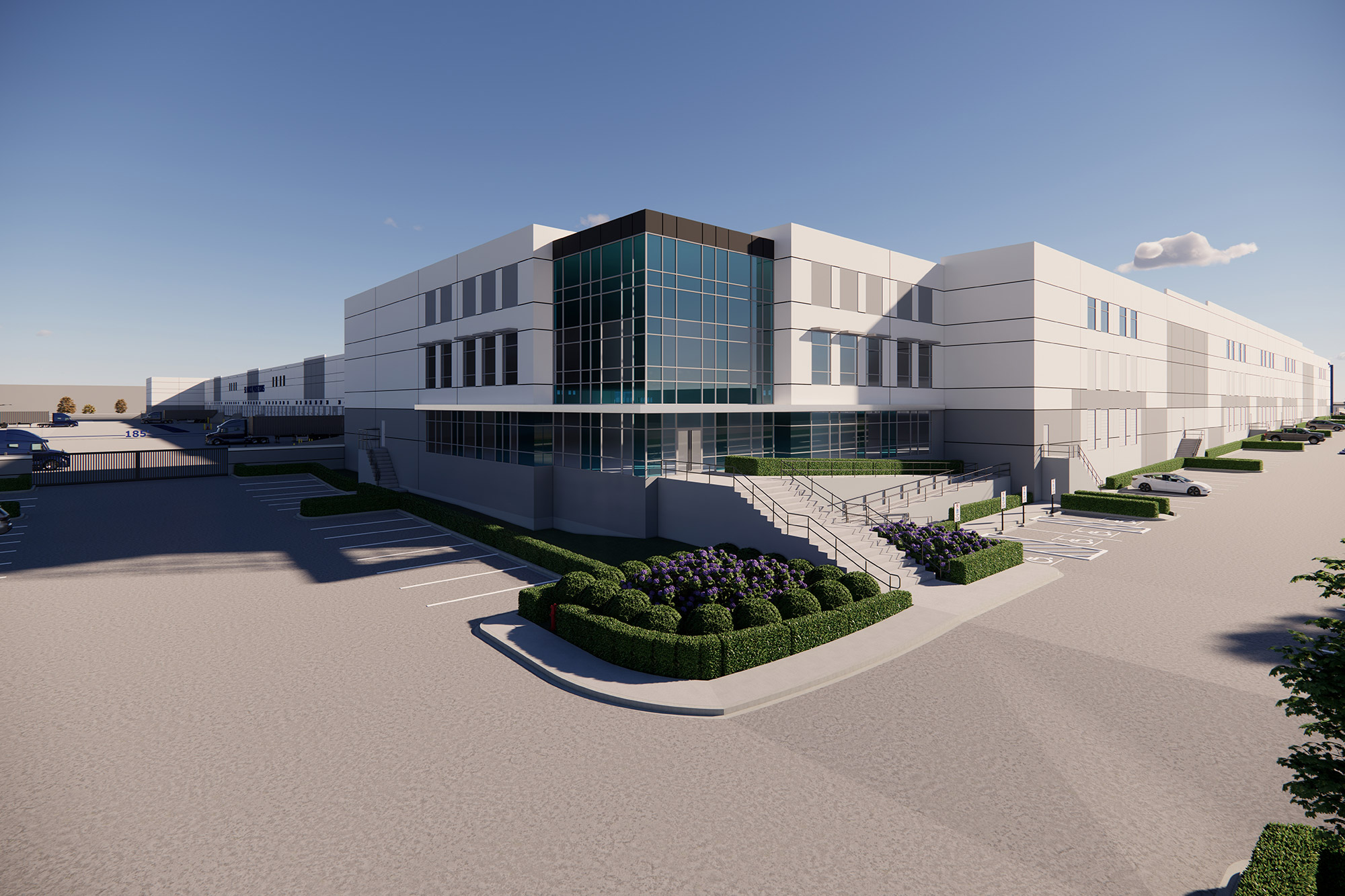

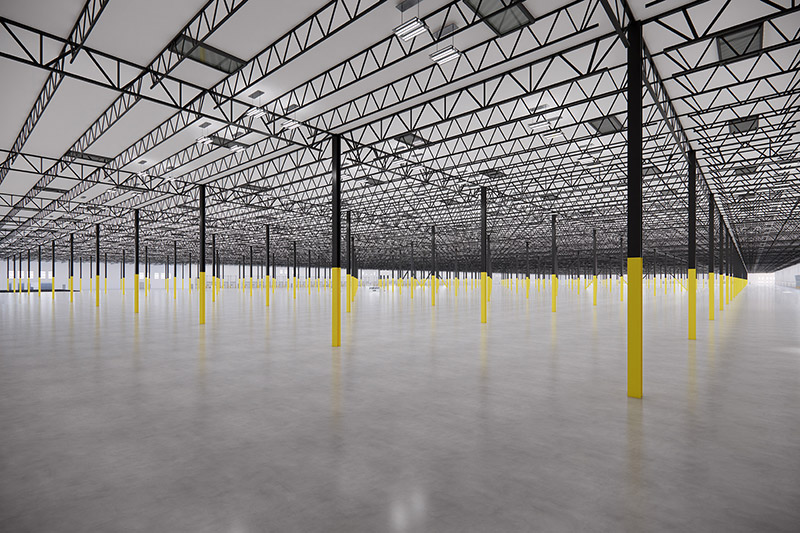

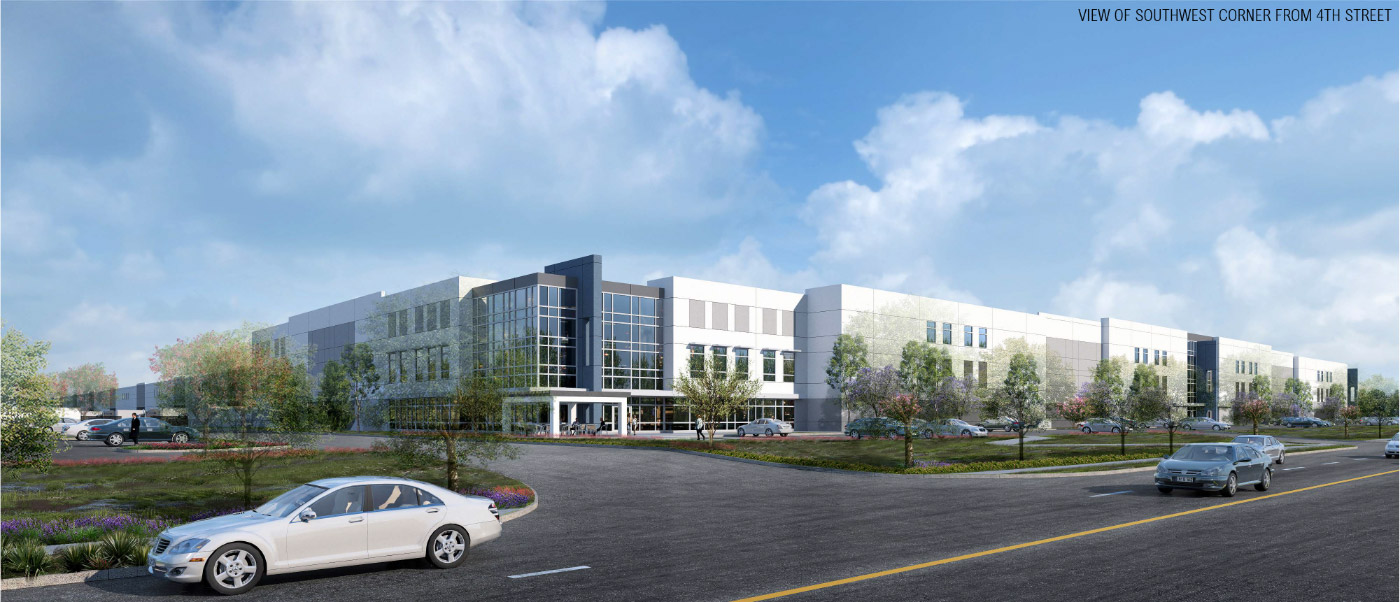

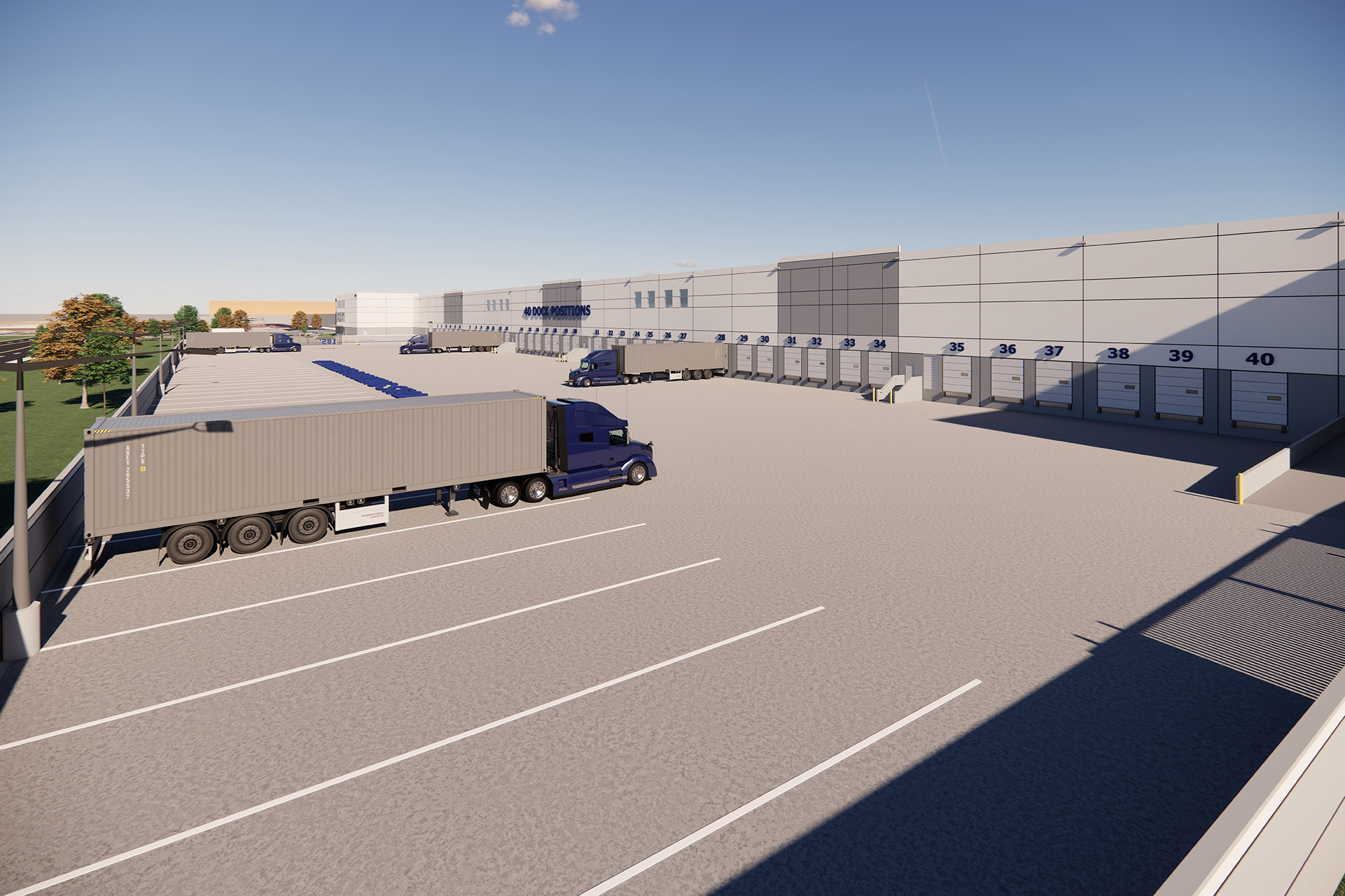

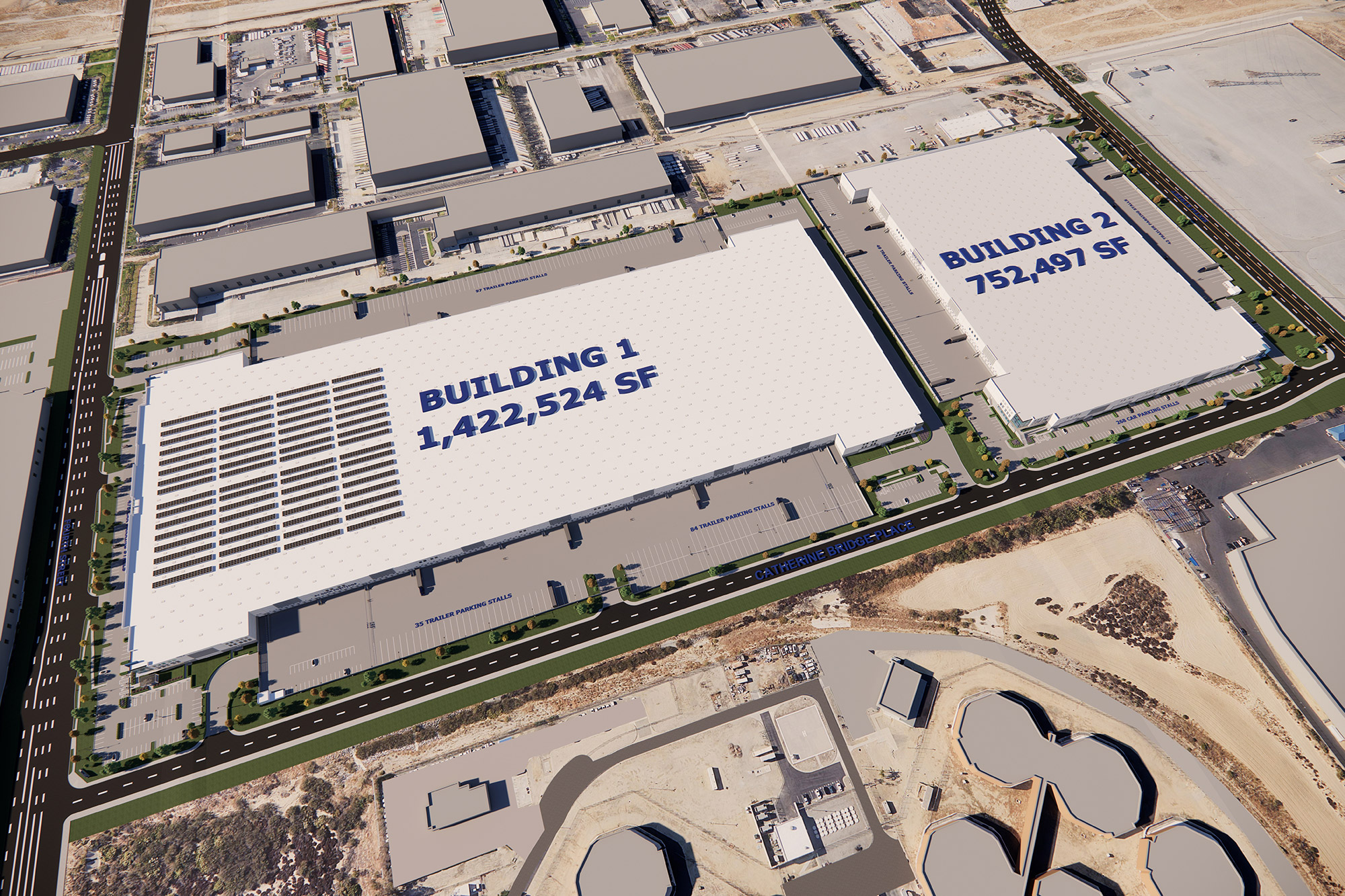

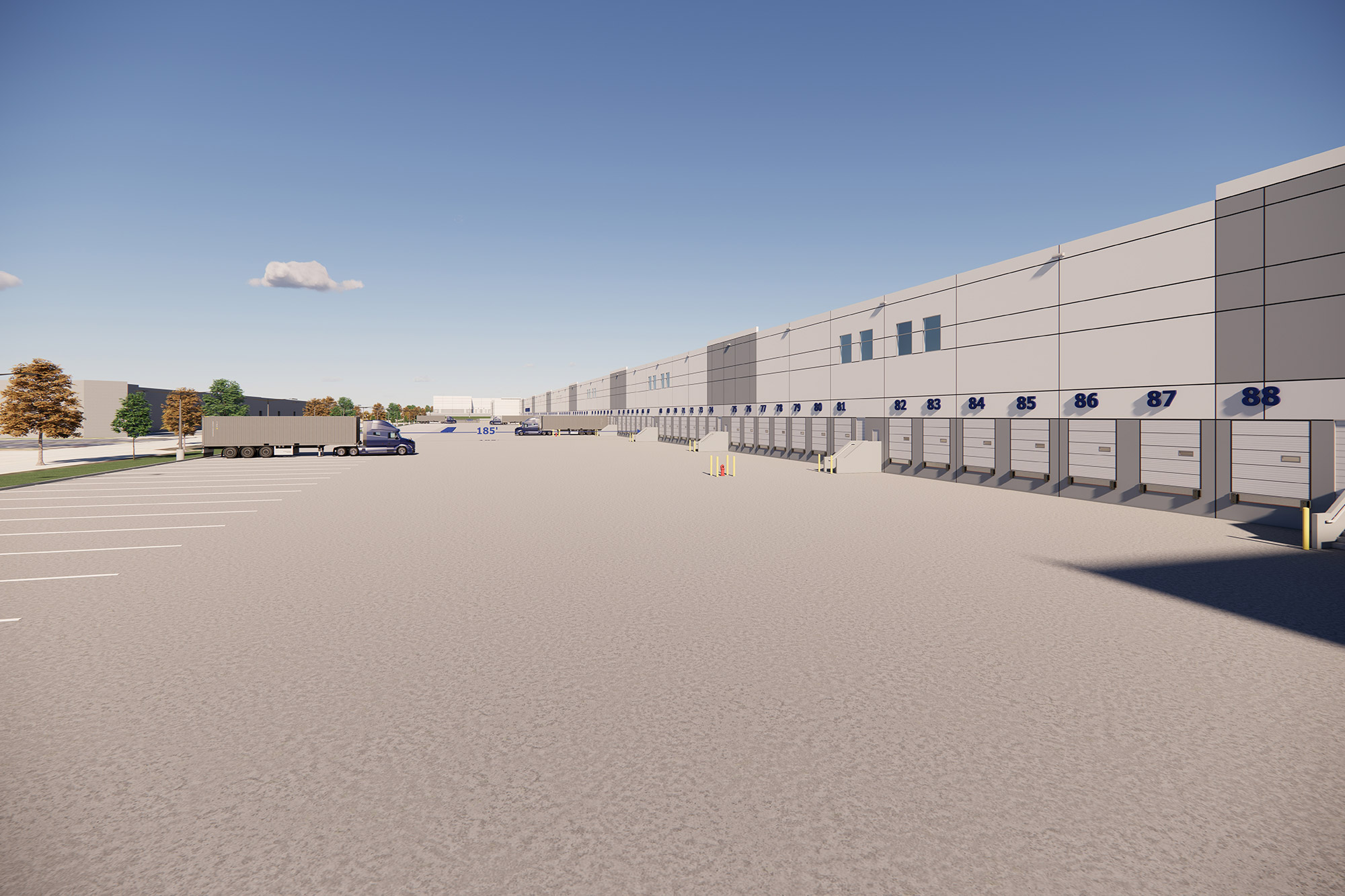

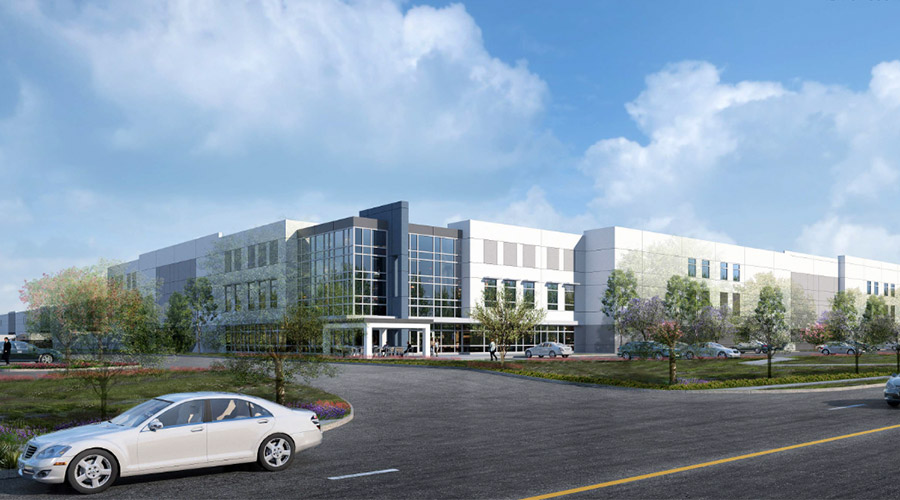

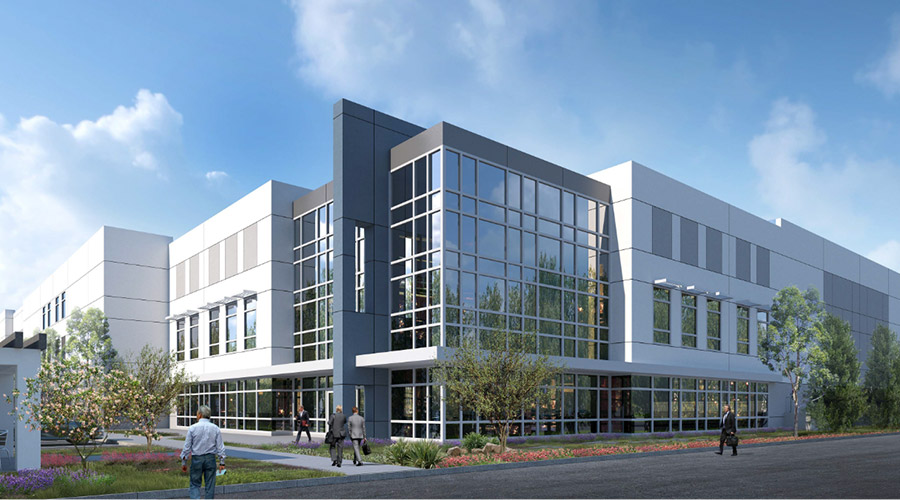

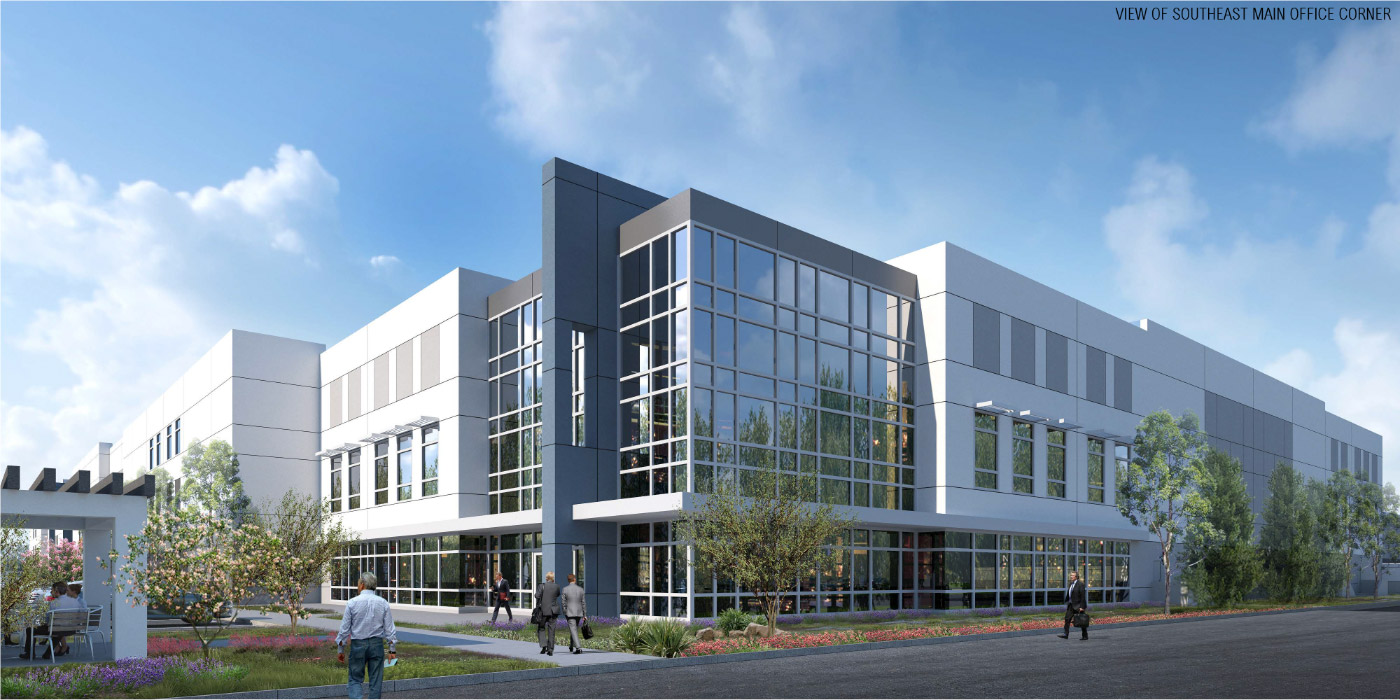

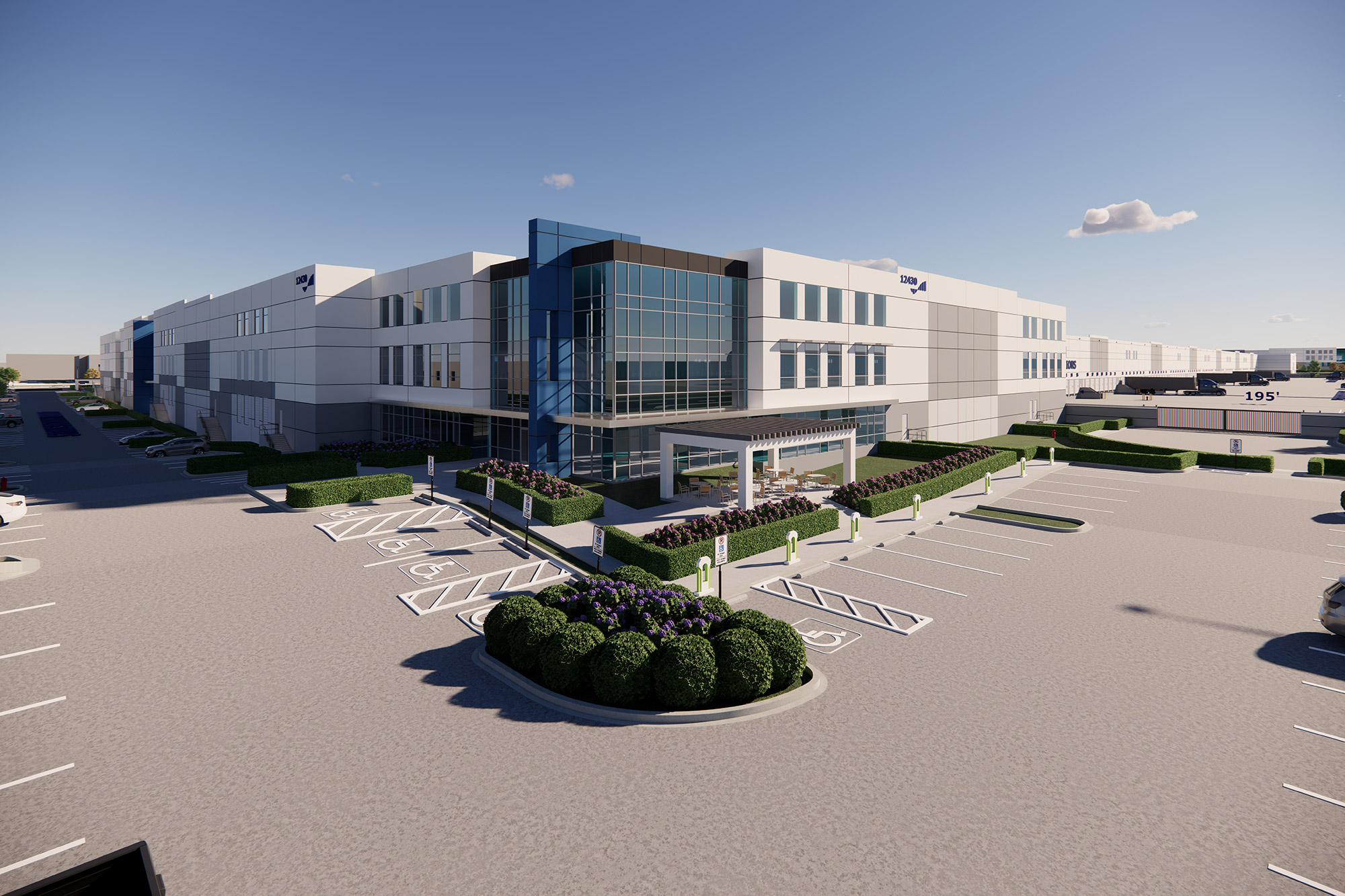

Building Renderings
